Dual Mode

The Dual Mode is the most efficient and technologically advanced nitrogen vaporization system in the marketplace today. The unit combines Vita's Quad-Phase flameless heat exchanger and Direct Fired technology, giving our clients the benefit of having two pieces of equipment in one. The system can deliver up to 180K SCFH (5,100m3) as a standalone non-fired unit, and up to 540K SCFH (15,200m3) by utilizing both systems in tandem. At 540K SCFH the Dual Mode achieves an ~40% reduction in fuel consumption. This piece of equipment is ideal for industrial and pipeline applications.

Equipment Specifications
  • Vaporization Rates:
    • 18K - 180K SCFH (510m35,100m3) Utilizing Heat Recovery System
    • 18K - 540K SCFH (510m3 - 15,300m3) Utilizing Both The Heat Recovery and Direct Fired System
  • Pressures: ≤ 15,000 psi (1,035 Bar)
  • Gas Temperatures: ≤ 500 ºF (260º C)
Equipment Features
  • Mounting Configurations
    • Body Load
    • Trailer

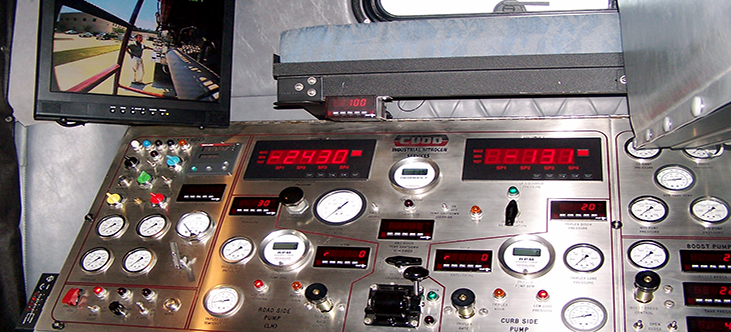

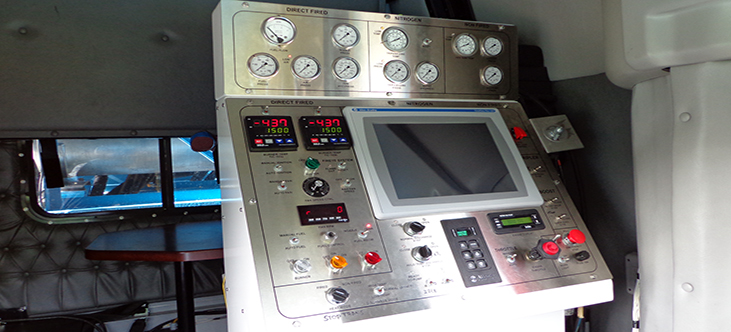

  • All Weather Climate-Controlled Operators Cabin
    • Air Conditioning and Heating
    • Body Load Configurations with Sleeper Option
  • Fully Integrated Data Acquisition System
    • Includes Software and Laptop Computer
  • 1,500 - 2,000 Gal. DOT or TC Certified LN2 Tank
  • Iron Packages: ≤ 200 ft
  • LN2 Pump Configurations
    • Dual Triplex
    • Single Triplex
  • Option for Reading Pressure at Customer Inlet Location
  • Rate and Pressure Connection for Data Van
  • Optional HT GN2 and LN2 Discharge Connection
Equipment Performance Enhancing Features
  • Patented Quad-Phase Flameless Heat Exchanger
  • Discharge Temperatures Upwards of 300˚ F (150˚ C) At Rates ≤ 1K SCFM
  • Dynamic Engine Loading Feature
    • Reduces The Learning Curve for New Operators
    • Protects Engine and Hydraulic System From Improper Operation
  • Hydraulic System Operates At Relatively Low Temperatures (130˚ F (55˚ C) - 165˚ F (75˚ C)) Increasing the Lifecycle of all Hydraulic Components
  • Proprietary Fuel / Air Mixing System for Clean Fuel Combustion
  • Proprietary Heat Exchanger Designed for Maximum Heat Transfer Efficiency
  • Body Load Unit Offers Exceptional Mobility In Tight Locations
  • Rugged Design and Rubber Mounting of Most Major Components
  • Redundant System / Engine Shutdown Protections
  • Superior Workmanship, Equipment Safety, and Reliability

Cudd is a registered trademark of Cudd Pressure Control

 Dual Mode Image Library
Vita’s N2 systems are the result of two decades of research and development, and are engineered to optimize operational performance. Each unique piece of equipment has a wide range of customization options and performance enhancing features that provide our clients with the latest technology to achieve maximum capacity, efficiency and reliability.
