Direct Fired Equipment

Vita’s direct-fired vaporization systems are engineered to maximize job efficiency, capacity, and reliability. Our Burner and Heat Exchanger technology facilitates unmatched heat transfer efficiency and low fuel consumption. It is capable of vaporization rates up to 20K SCFM open ended without any aid from back-pressure. The system's reliability comes from its rugged design for long term operation, serviceability, and safety.

Equipment Specifications
  • Vaporization Rates: 20K - 1.2M SCFH (570m- 34,000m3)
  • Pressures: ≤ 15,000 PSI (1,035 Bar)
  • Gas Temperatures: ≤ 1,000º F (540º C)
Equipment Features & Options
  • Mounting Configurations
    • Body Load
    • Trailer
    • Skid
  • All Weather Climate-Controlled Operators Cabin
    • Air Conditioning and Heating
    • Body Load Configurations Come with a Full Sleepers Cabin
  • Fully Integrated Data Acquisition System
    • Includes Software and Lap Computer
  • 2,000 - 3,000 Gal. DOT or TC Certified LN2 Tank
  • Iron Packages: ≤ 200 ft
  • Low Flow Rate Accommodations:
    • Cold End Unloaders
    • Burner Low Pilot for Low Fuel Consumption
  • Option for Reading Pressure at Customer Inlet Location
  • Rate and Pressure Connection for Data Van
  • HT / LT Discharge Connection (-320º F - 1000º F Allows For Maximum Control Over Discharge Temperature)
Equipment Performance Enhancing Features
  • Proprietary Fuel / Air Mixing System for Clean Fuel Combustion

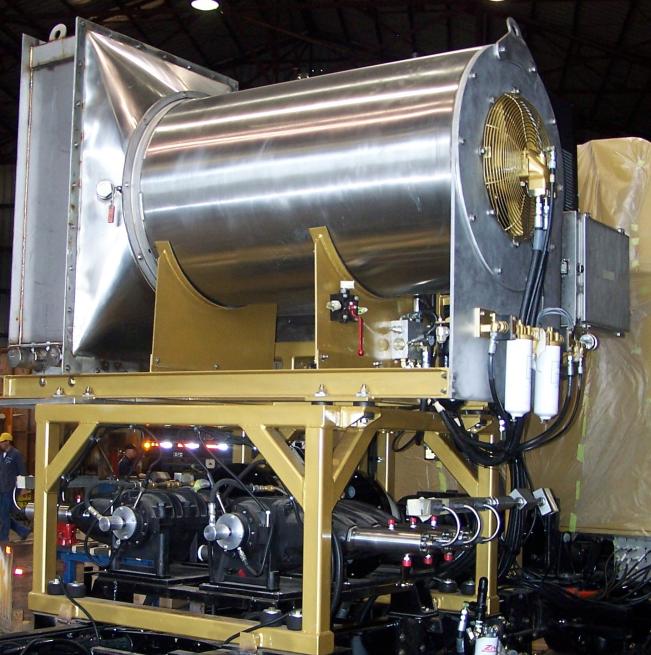

  • Proprietary Heat Exchanger Design for Maximum Heat Transfer Efficiency

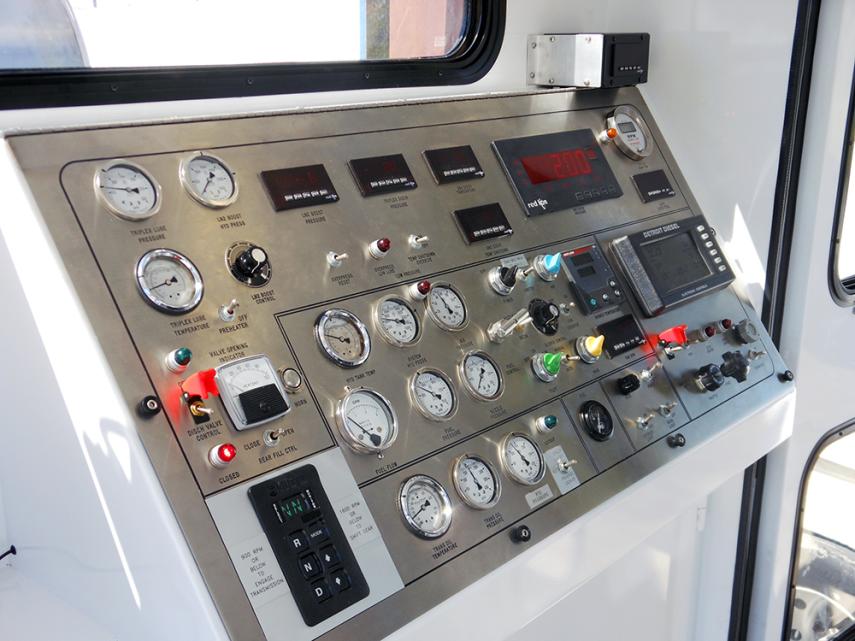

  • Manual, Semi-Auto, and Fully Automatic Vaporizer Control System
  • Possible Compliance with Strict Emission Standards
  • Rugged Design and Rubber Mounting of Most Major Components
  • Multiple System / Engine Shutdown Protections
  • Simplistic Design For Ease of Operation
  • Superior Workmanship, Equipment Safety and Reliability



DOWNLOADS
Direct Fired Brochure — Download PDF


 Direct Fired Image Library










Vita’s N2 systems are the result of two decades of research and development, and are engineered to optimize operational performance. Each unique piece of equipment has a wide range of customization options and performance enhancing features that provide our clients with the latest technology to achieve maximum capacity, efficiency and reliability.
